20A – 100L Blast Pot

About the 20A - 100L Blast Pot

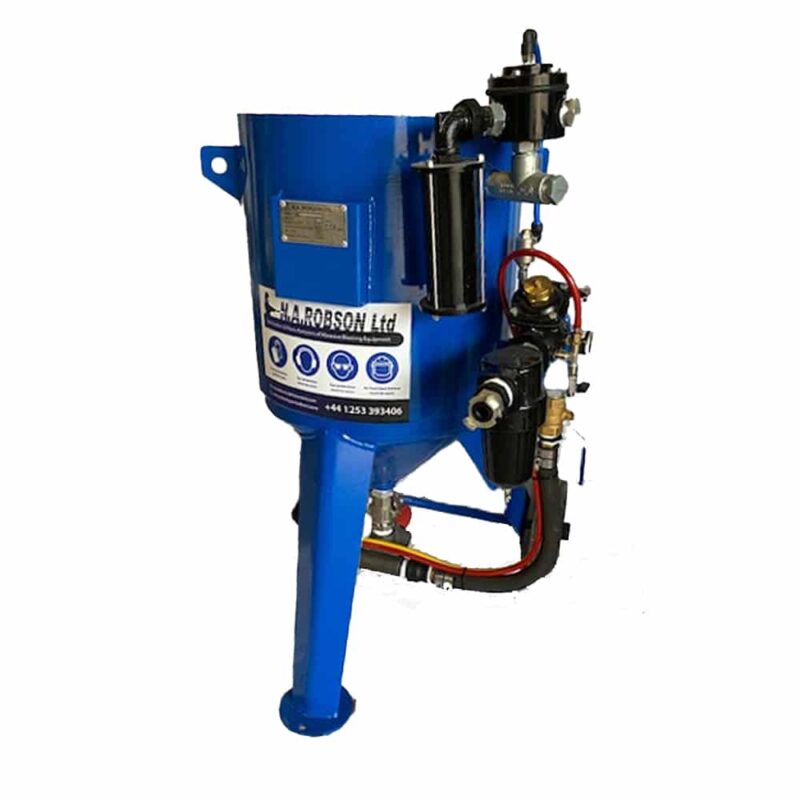

20A – 100L Blast Pot

20A – 100L Blast Pot is designed for the medium to large contract work, as it has a large capacity vessel. This provides the operator with less down time.

The machine is ideal for the medium to large contract where mobility and high production is required.

All of N.A.Robson ltd Pressure Vessels are Fabricated & Hydraulically tested to 300 psi to the latest BS specification. Fully CE marked

The 20A Blast Pot comes with

• • Minor abrasive Metering valve – excellent control of all abrasive, complete with quick release cleaning system
  • Quick release system
  • 1 1/4″Auto Air (Remote ) Valve
  • Independent exhaust valve
  • 1 1/2″ Moisture Separator
  • Concave top and conical bottom allows rapid easy filling and ensures free flowing exit to most types of abrasive.
  • Inspection hatch in all of our Blast pot

Optional Extras include:

• Sieves to prevent debris entering the Pot
• Lids to prevent rain and foreign objects entering the Pot

The Blast Pot is fitted with large rugged wheels for maximum mobility

PLEASE NOTE THIS WILL BE DELIVERED ON A PALLET

We can also fit a pressure regulator and / or an air operated grit valve if required for an additional cost.

The Blast Pot is fitted with large rugged wheels for maximum mobility.

The Specification of the Blast Pot:

Capacity                  Overall Dimensions           Weight          Piping
 Litre   Kgs     Lbs        H x W x D  (mm)               (Kgs)            (I.D.)

100         100     2000      1100 x 810 x 960                          150                  1″
