20A-Package – 100L NV2000 Blast Pot Package

About the 20A-Package - 100L NV2000 Blast Pot Package

20A-Package – 100L NV2000 Blast Pot Package is the standard size blast pot, The 100L  pot is designed for the medium to large contract work, as it has a large capacity vessel. This provides the operator with less down time.

The machine is ideal for the  medium to Large contract where mobility and high production is required.

All of N.A.Robson Pressure Vessels are Fabricated & Hydraulically tested to 300 psi to latest BS specification

PLEASE NOTE SIEVE AND LID NOT INCLUDED

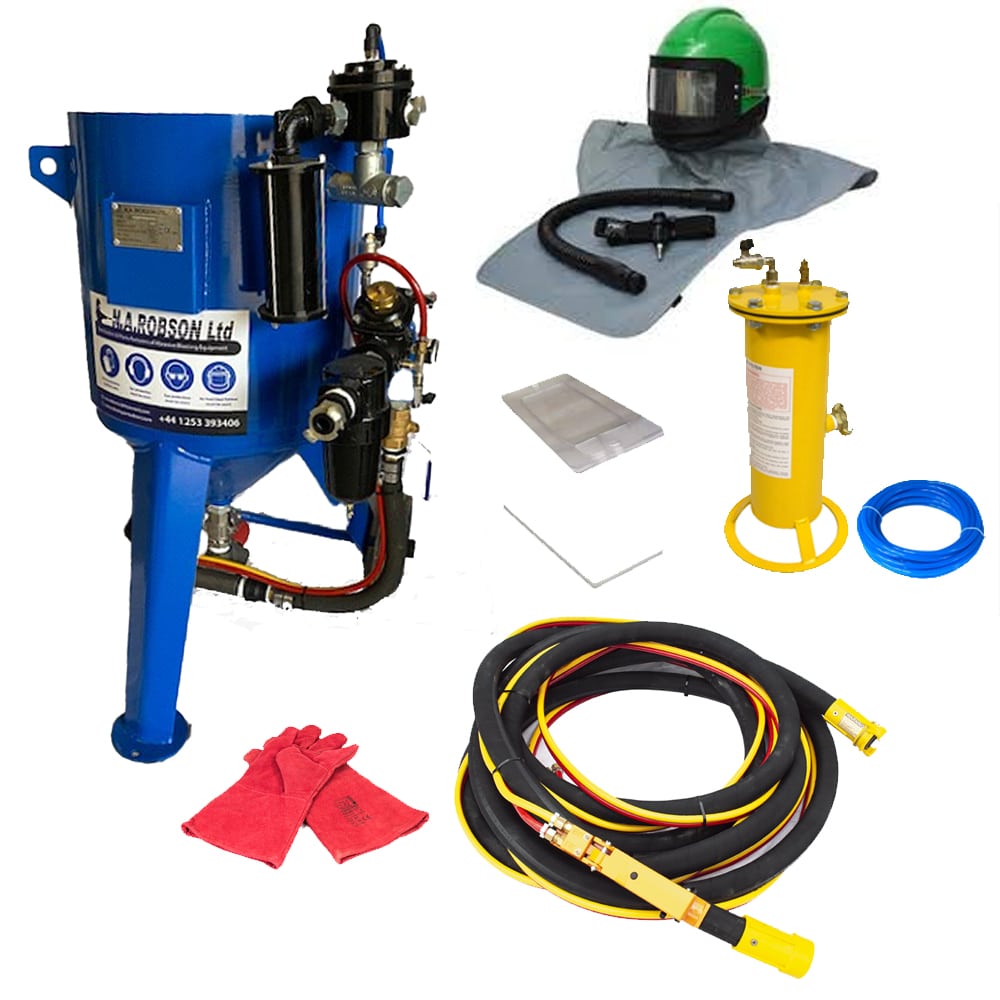

Our 20A-Package – 100L NV2000 Blast Pot Package includes:

• 20″- 100 L Blast Pot
• MPC-210 Minor abrasive Metering valve
• Quick release system
• Independent exhaust valve REV
• AAV-125 – 1 1/2″ Auto Air Valve
• WS150 1 1/2″ Moisture Separator
• BH5 -10metre 1 1/2” Blast hose Complete
• Deadman lines and deadman handle
• Blast Nozzle (Please specify what size CFM compressor you are using so we can match the nozzle size)
• AAF-1 – Free Standing Breathing Air Filter C/W 10mts 1/4″ Breathing Air line
• NV2000 – NOVA 2000 Ce Blast Cleaning Helmet
• NVDEAL1 – NOVA 2000 TEAR OFF OUTER VISOR PACK 54 & 1 x NVINNER
• GL1 – Pair of Blast Gloves

• Optional Extras include:
  Blast Hose Extension
  Sieves to prevent debris entering the Pot
  Lids to prevent rain and foreign objects entering the Pot

PLEASE NOTE THIS WILL BE DELIVERED ON A PALLET

We can also fit a pressure regulator and / or an air operated grit valve if required for an additional cost.

The Blast Pot is fitted with large rugged wheels for maximum mobility.

The Specification of the Blast Pot:

Capacity                  Overall Dimensions           Weight          Piping
 Litre   Kgs     Lbs        H x W x D  (mm)               (Kgs)            (I.D.)

100         100     2000      1100 x 810 x 960                          150                  1″
