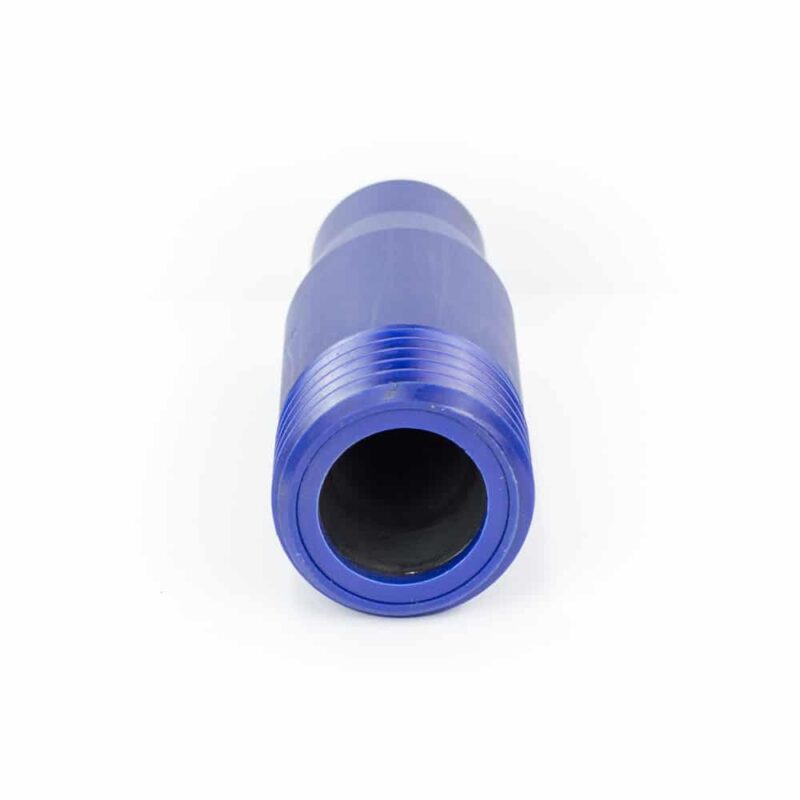

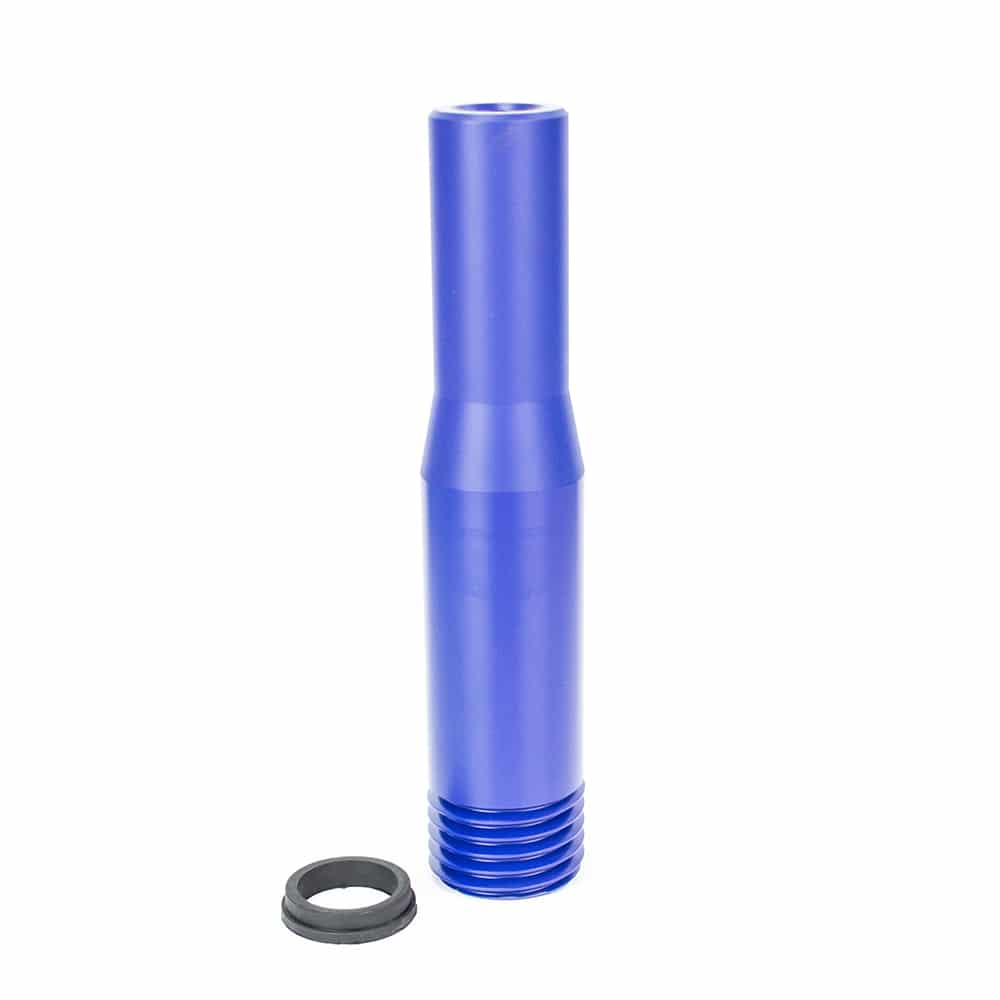

Silicon Carbide Nozzle SCC-Range

About the Silicon Carbide Nozzle SCC-Range

Silicon Carbide Nozzle is also about one fifth lighter than Tungsten Carbide, so it is an excellent choice to minimize operator fatigue and maximize productivity.

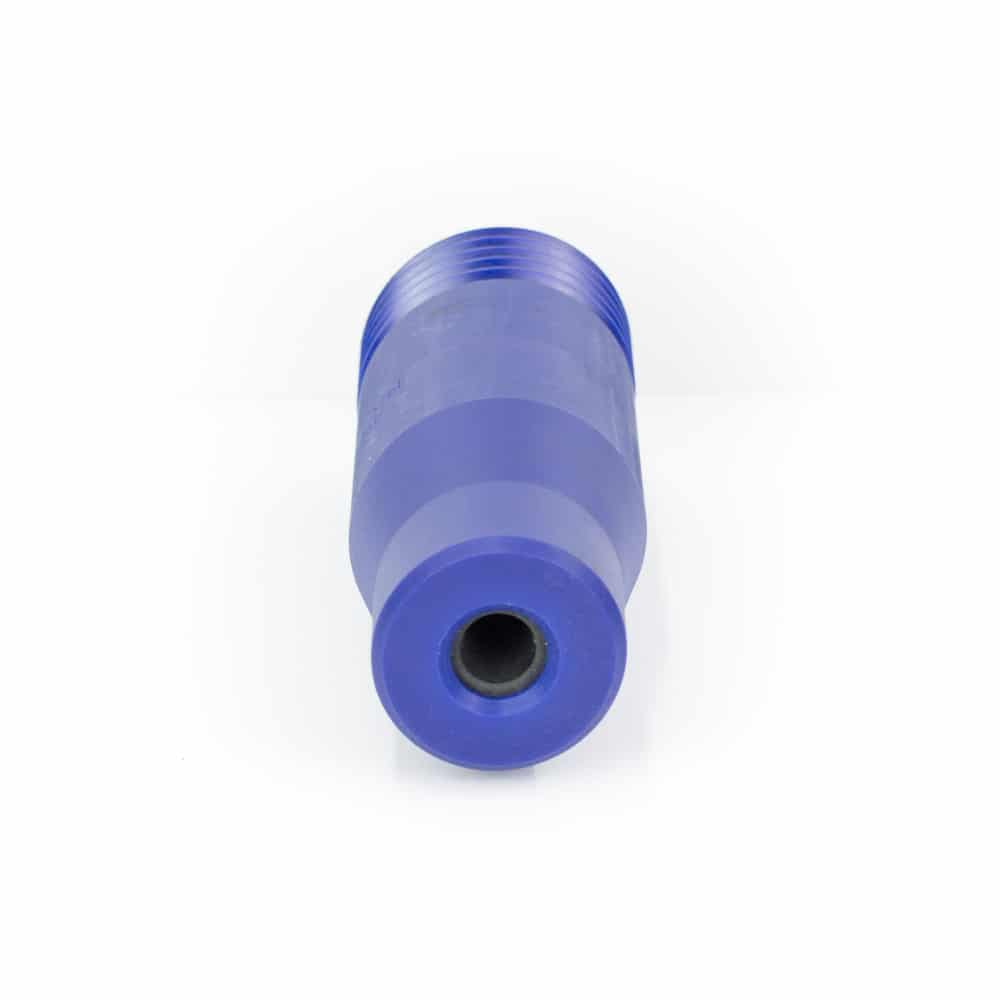

The Silicon Carbide Abrasive Blast Nozzle is a general purpose, Polyurethane Jacketed Blast Nozzle. It features a Silicon Carbide Liner and a Polyurethane Jacket to absorb the treatment of a Blast Room facility.

The Polyurethane Jacket is designed to absorb shock and help prevent damage to the Blast Nozzle.

AIR REQUIREMENT CHART
Lowest Direct Air required

NO.350 NOZZLE  – 3/16″ / 4.8mm   LENGTH – 51/2″ / 140mm AIR REQUIREMENT 45 CFM
NO.450 NOZZLE – 1/4″ / 6.0mm      LENGTH – 51/2″ / 140mm AIR REQUIREMENT 81 CFM
NO.550 NOZZLE – 5/16″ / 8.0mm   LENGTH – 5 3/4″ / 147mm AIR REQUIREMENT 137 CFM
NO.650 NOZZLE  – 3/8″ / 9.5mm   LENGTH – 7″ / 180mm AIR REQUIREMENT 196 CFM
NO.750 NOZZLE- 7/16″ / 11.0mm   LENGTH – 8″ / 200mm AIR REQUIREMENT 260 CFM
NO.850 NOZZLE – 1/2″ / 12.5mm   LENGTH – 9″ / 230mm AIR REQUIREMENT 340 CFM

THESE AIR REQUIREMENTS ARE TO ACHIEVE 100 psi AT THE NOZZLE

NOZZLE SERVICE LIFE IN HOURS

NOZZLE MATERIAL     STEEL SHOT & GRIT MEDIA  SLAG MEDIA    ALUMINIUM OXIDE
Tungsten Carbide         400-800                           300-400                  20-40
Silicon Carbide              500-900                           350-600                   50-100
Silicon Nitride               600 – 1200                       500-1000                  150-500
Boron Carbide               1500-2500                       750-1500                  200-1000

Please note the nozzle design may differ due to stock levels and supplier
