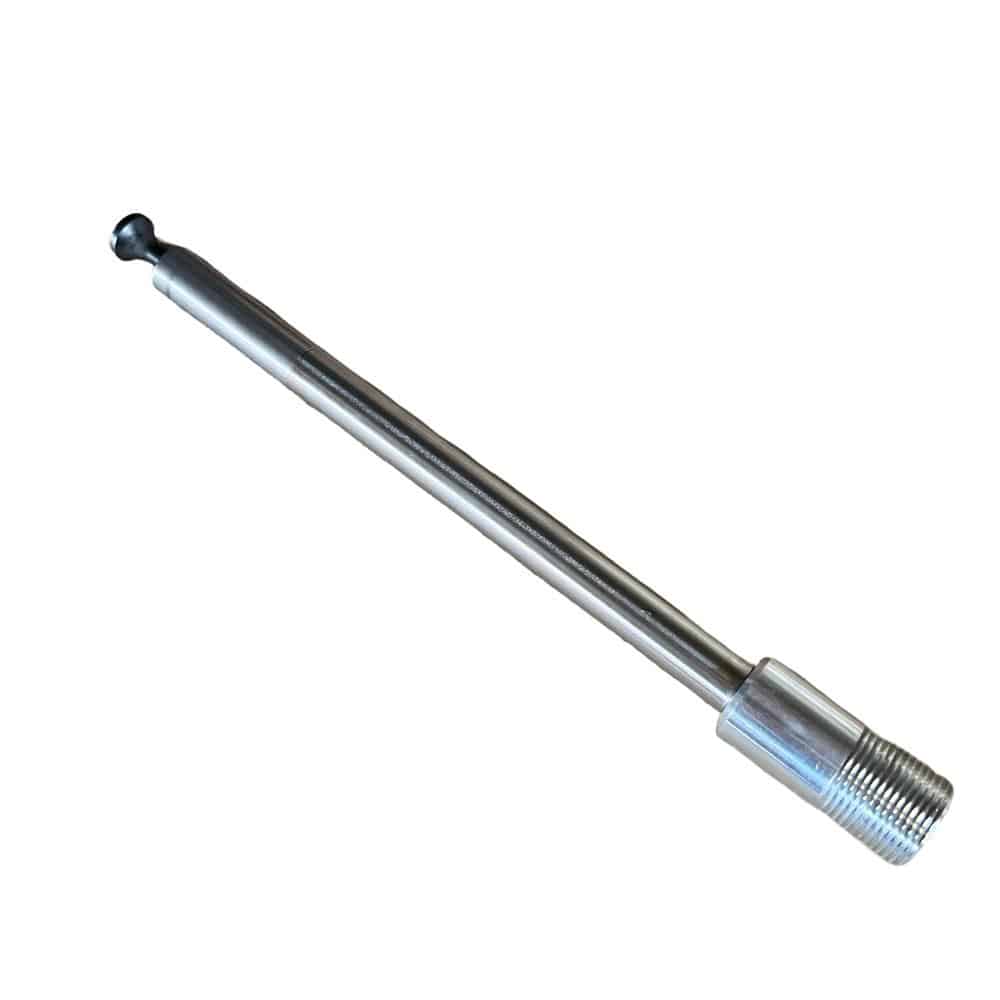

IPNC-360F – Internal Pipe Blasting Nozzle 360° (3/4″ Thread)

About the IPNC-360F - Internal Pipe Blasting Nozzle 360° (3/4" Thread)

IPNC-360F – Internal Pipe Blasting Nozzle 360° (3/4″ Thread)

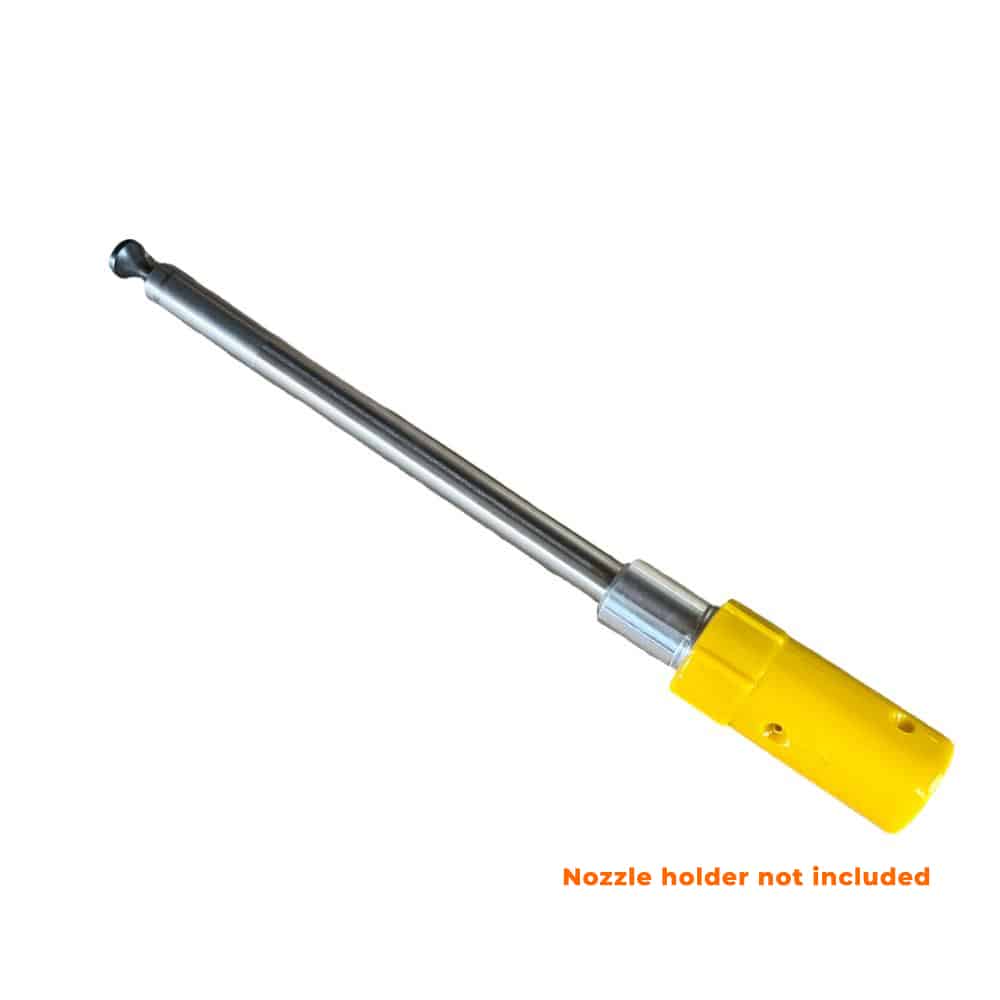

This Nozzle fits our CHE0-F or N5 Nozzle Holders and BH4: 1/2″(13mm) x 1.1/8″(28mm)  12 Bar blast Hose

Our Internal tube blasting nozzles of the type IPNC-360F are ideally suited for blasting the inner surface of tubes with an internal diameter of 19mm (3/4″) to 50 mm (2″)

The nozzle is 270mm from bottom of the thread to the tip.

The nozzle is used instead of a conventional nozzle with common nozzle holders. In the IPNC-360L blasting nozzle, the blasting agent is directed onto a deflection disk instead of straight out of the nozzle.

This directs the abrasive in a circular pattern that impacts and cleans the inner surface of the pipe. Made of tungsten carbide.

The length of the working area is 200 mm.

Highly abrasion-resistant tubular internal jet nozzle made of tungsten carbide (TC).
