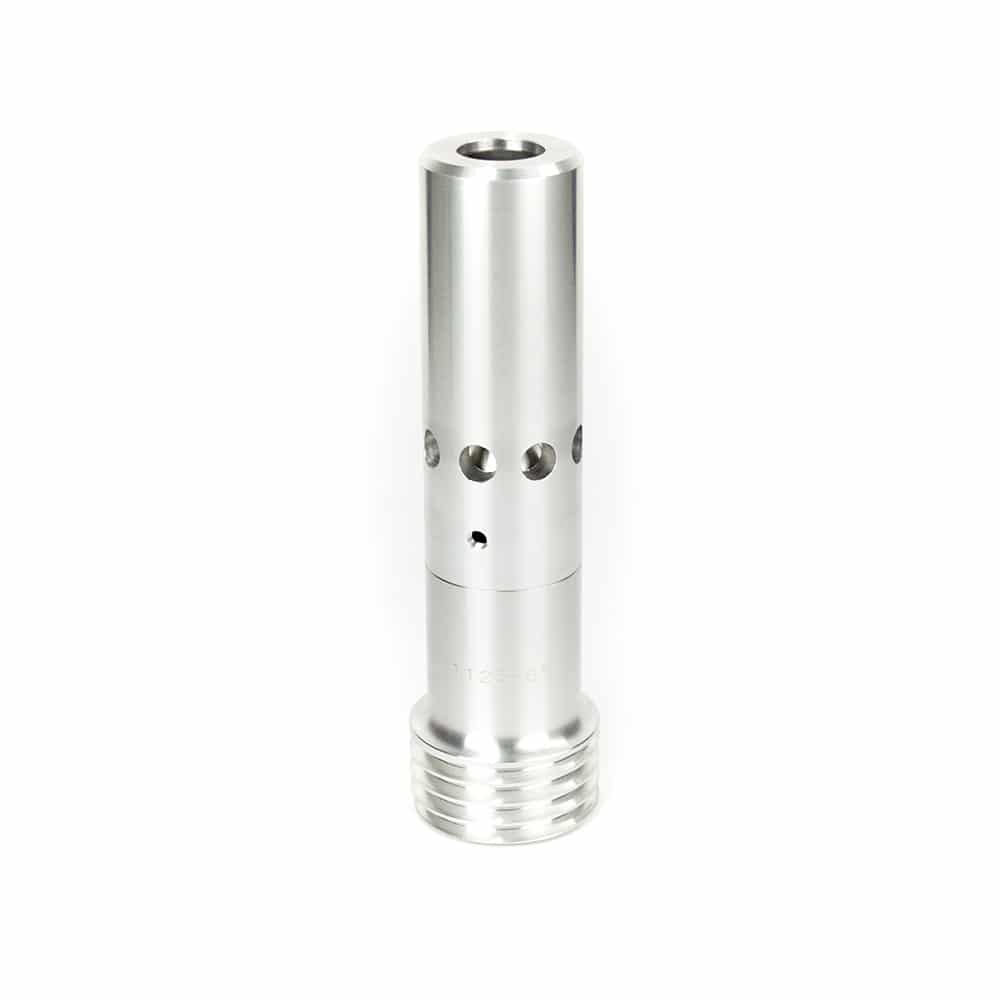

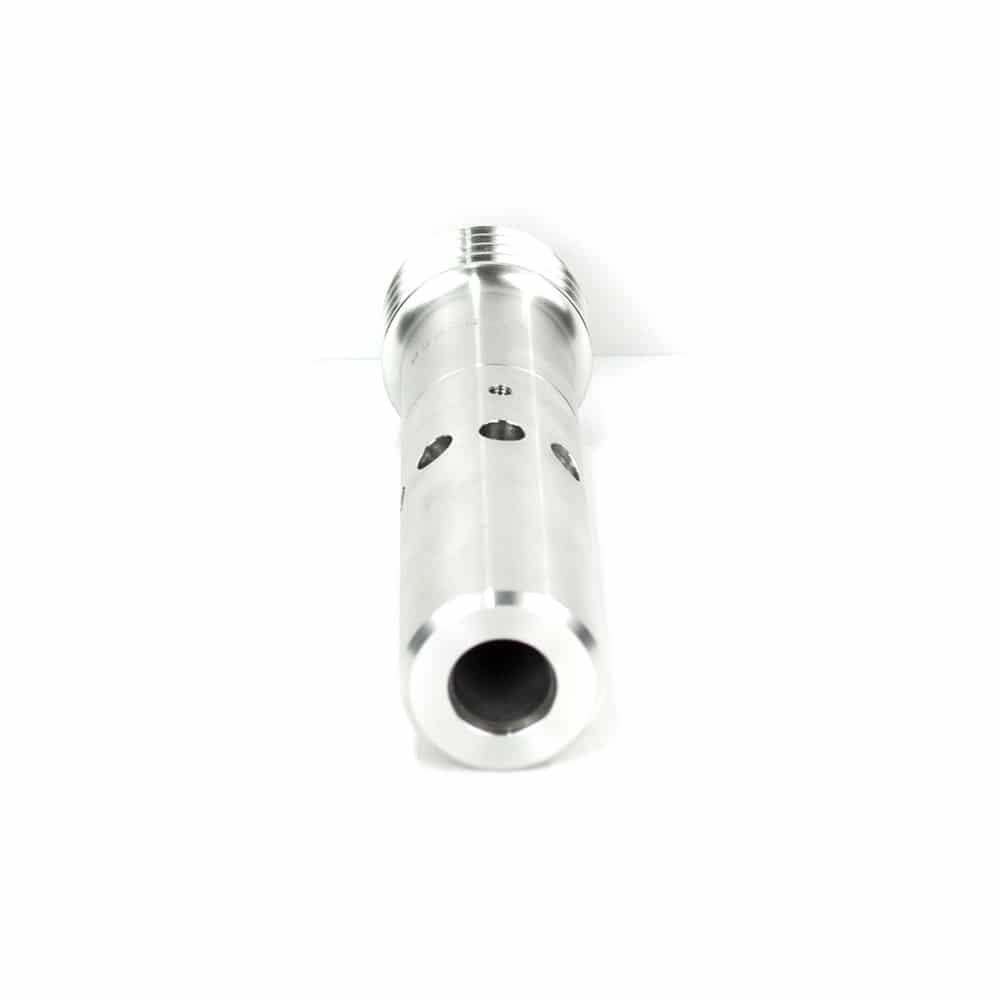

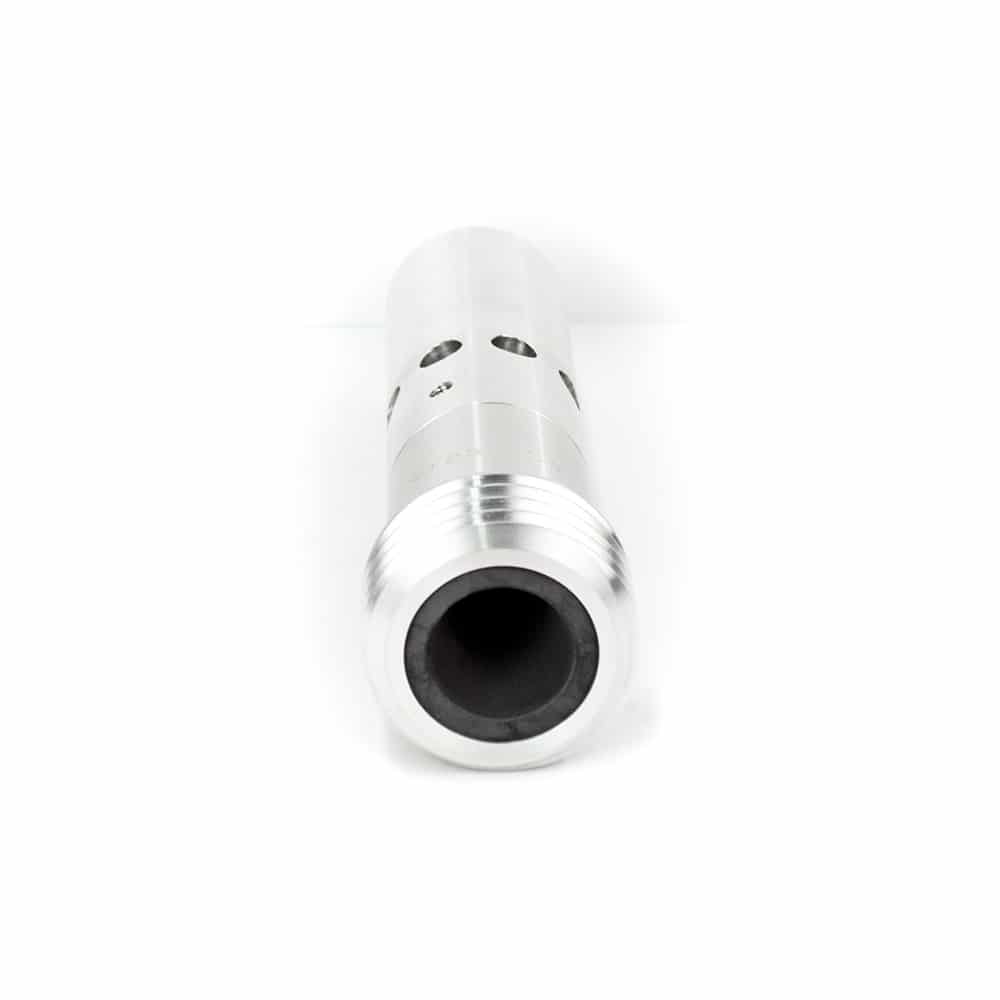

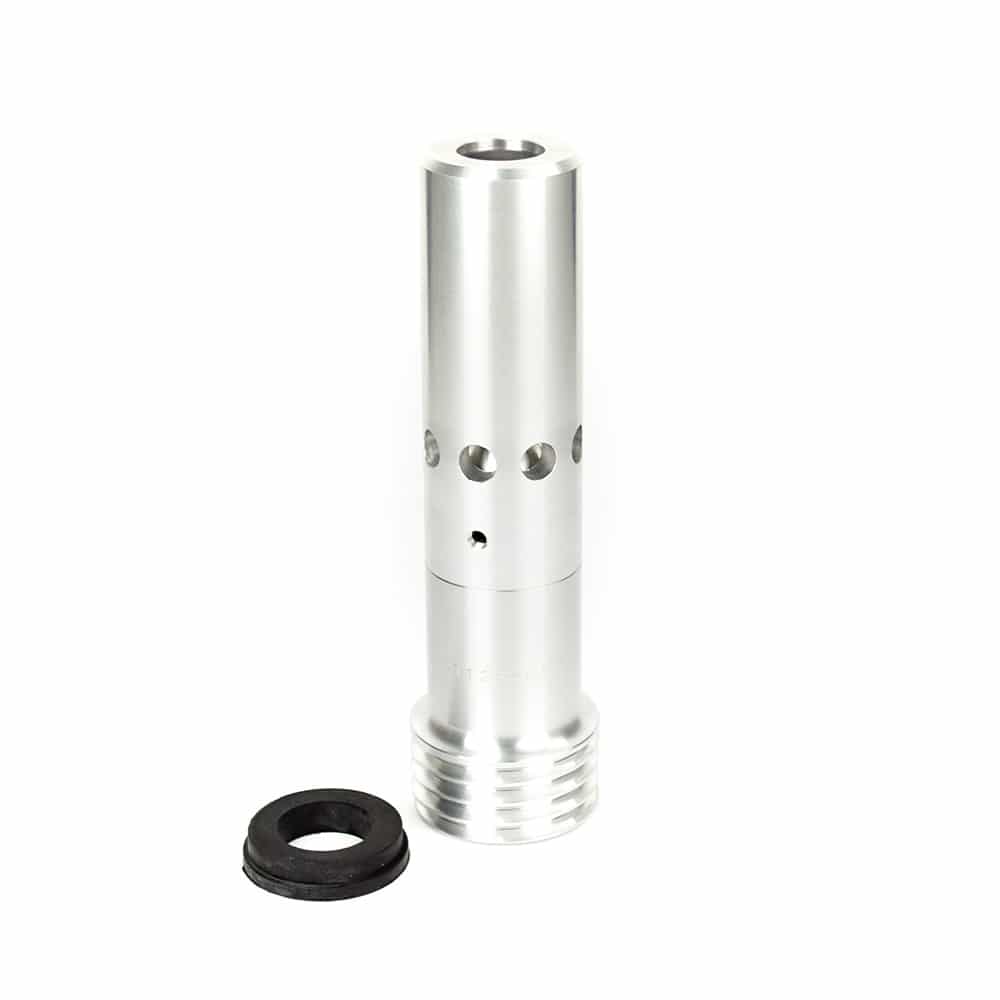

T125-650 3/8″ (9.5mm) Double Venturi Blast nozzle

About the T125-650 3/8″ (9.5mm) Double Venturi Blast nozzle

Our T125-650 3/8″ (9.5mm) Double Venturi Blast nozzle

Offers a major advantage when blasting the like of stainless steel

It has around 35% larger blast pattern than a standard long venturi with only a very slight loss in abrasive velocity.

Double venturi nozzles are used where a wider blasting pattern is needed. Air is drawn through the holes into a low pressure area, expanding the air flow to produce the wider blast pattern.

The Double Venturi Blast Nozzle produces a more even dispersion of abrasive throughout the larger blast pattern.

AIR REQUIREMENT

For this size Blast nozzle here is the size and the air required for best performance

NO.650 NOZZLE BORE – 3/8″ / 9.5 mm   LENGTH-  7″ / 180mm

              LOWEST DIRECT AIR  REQUIREMENT-  196 CFM

THE AIR REQUIREMENT IS TO ACHIEVE 100 psi AT THE NOZZLE
