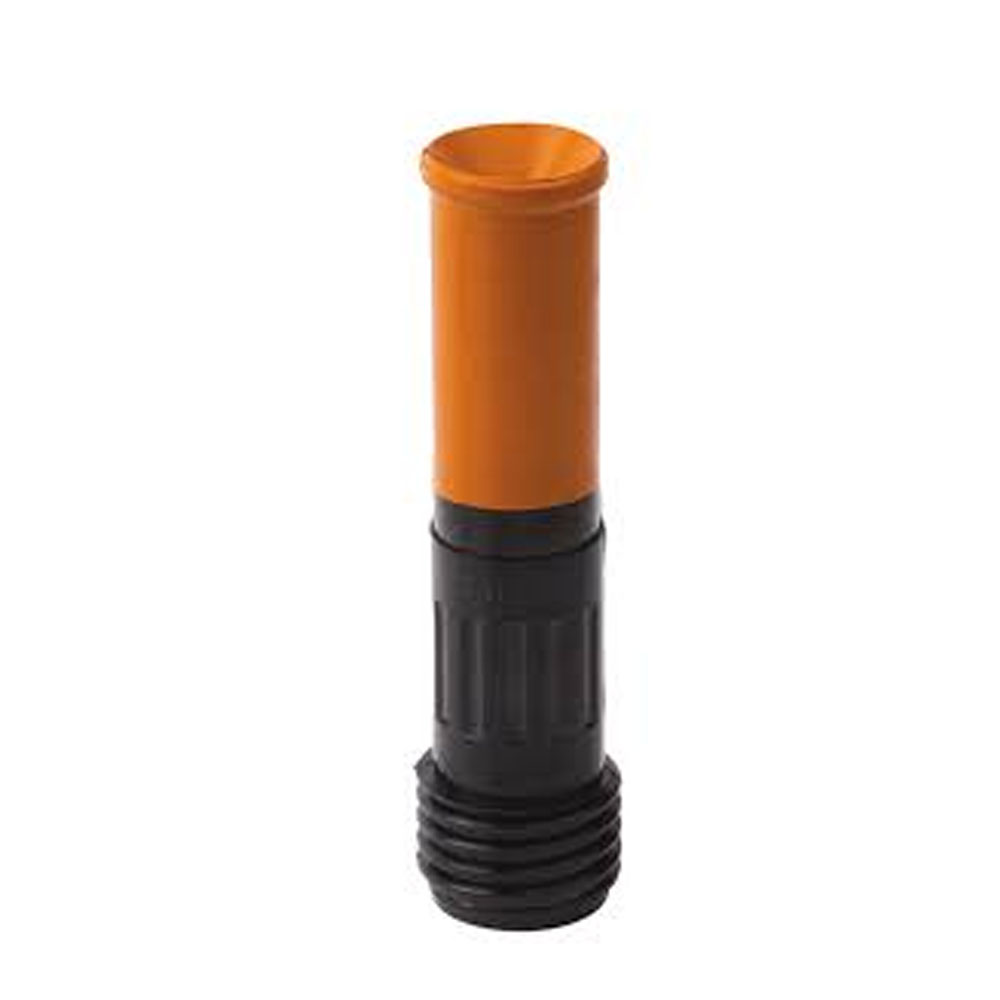

TCR Tungsten Carbide Rubber Jacket Nozzle Range
Prices from: £76.50
TCR Tungsten Carbide Rubber Jacket Nozzle Range
Our TCR tungsten carbide (TCR) blasting nozzle range are highly durable and wear-resistant nozzle used for abrasive blasting, the nozzle has a Orange rubber jacket.
- Material: Tungsten carbide liner for superior wear resistance
- Protective Jacket: Orange rubber jacket for impact protection
- Application: Designed for abrasive blasting operation
- Durability: Long service life even in harsh conditions
- Performance: Maintains consistent blasting efficiency
Free UK shipping on orders over £100. (T&Cs Apply) Learn More
Collection available View store location
About the TCR Tungsten Carbide Rubber Jacket Nozzle Range
TCR Tungsten Carbide Rubber Jacket Nozzle Range
Our TCR Tungsten Carbide Rubber Jacket Nozzle range is engineered for maximum durability and efficiency in abrasive blasting applications. Featuring a robust tungsten carbide liner for exceptional wear resistance and an orange rubber jacket for added protection and shock absorption, these nozzles deliver consistent performance in demanding environments. Ideal for professionals seeking longevity, reliability, and precision in surface preparation tasks
These nozzles are the preferred choice for professional operators due to their long lifespan and ability to handle hard, aggressive abrasives
Key Features and Benefits
- Exceptional Durability: Tungsten carbide offers excellent durability and wear resistance
- Impact Resistance: They are highly impact-resistant with the orange rubber jacket, making them suitable for use on construction sites or in harsh environments where they may be subjected to physical stress.
- Efficiency: Many TC nozzles feature a Venturi design, which is engineered to create a wide blast pattern
- Versatility: They are available in various lengths, bore diameters (e.g., 6.4mm to 12.7mm)
Technical Specifications
| Specification | Details |
|---|---|
| Material | Tungsten Carbide + Rubber Jacket |
| Color | Orange Jacket |
| Thread Type | 50mm Contractor / 2″ UNC |
| Bore Sizes | 6.4mm, 8mm, 9.5mm, 11mm, 12.7mm |
| Length | 150mm – 200mm |
| Weight | Approx. 1.2 kg |
Comparison Table (H2)
| Feature | TCR Tungsten Carbide Rubber Jacket | Standard Ceramic Nozzle | Boron Carbide Nozzle |
|---|---|---|---|
| Durability | ★★★★★ (Excellent) | ★★☆☆☆ (Low) | ★★★★★ (Excellent) |
| Wear Resistance | High | Low | Very High |
| Protective Jacket | Orange Rubber | None | None |
| Cost | Moderate | Low | High |
| Ideal For | Heavy-duty blasting | Light blasting | Extreme wear jobs |
TCR-450 NOZZLE – 1/4″ / 6.4mm LENGTH – 140mm AIR REQUIREMENT 81 CFM
TCR-550 NOZZLE – 5/16″ / 8.0mm LENGTH – 160mm AIR REQUIREMENT 137 CFM
TCR-650 NOZZLE – 3/8″ / 9.5mm LENGTH – 180mm AIR REQUIREMENT 196 CFM
TCR-750 NOZZLE- 7/16″ / 11.0mm LENGTH – 200mm AIR REQUIREMENT 260 CFM
TCR-850 NOZZLE – 1/2″ / 12.5mm LENGTH – 230mm AIR REQUIREMENT 340 CFM
Additional Information
| Weight | N/A |
|---|---|
| Nozzle Size | 450 – 1/4" (6.40 mm) 80/125 CFM, 550 – 5/16" (8.0mm) 150/170 CFM, 650 – 3/8" (9.5mm) 250/270 CFM, 750 – 7/16" (11.00 mm) 254/350 CFM, 850 – 1/2" (12.7mm) 350/425CFM |
